OVERVIEW

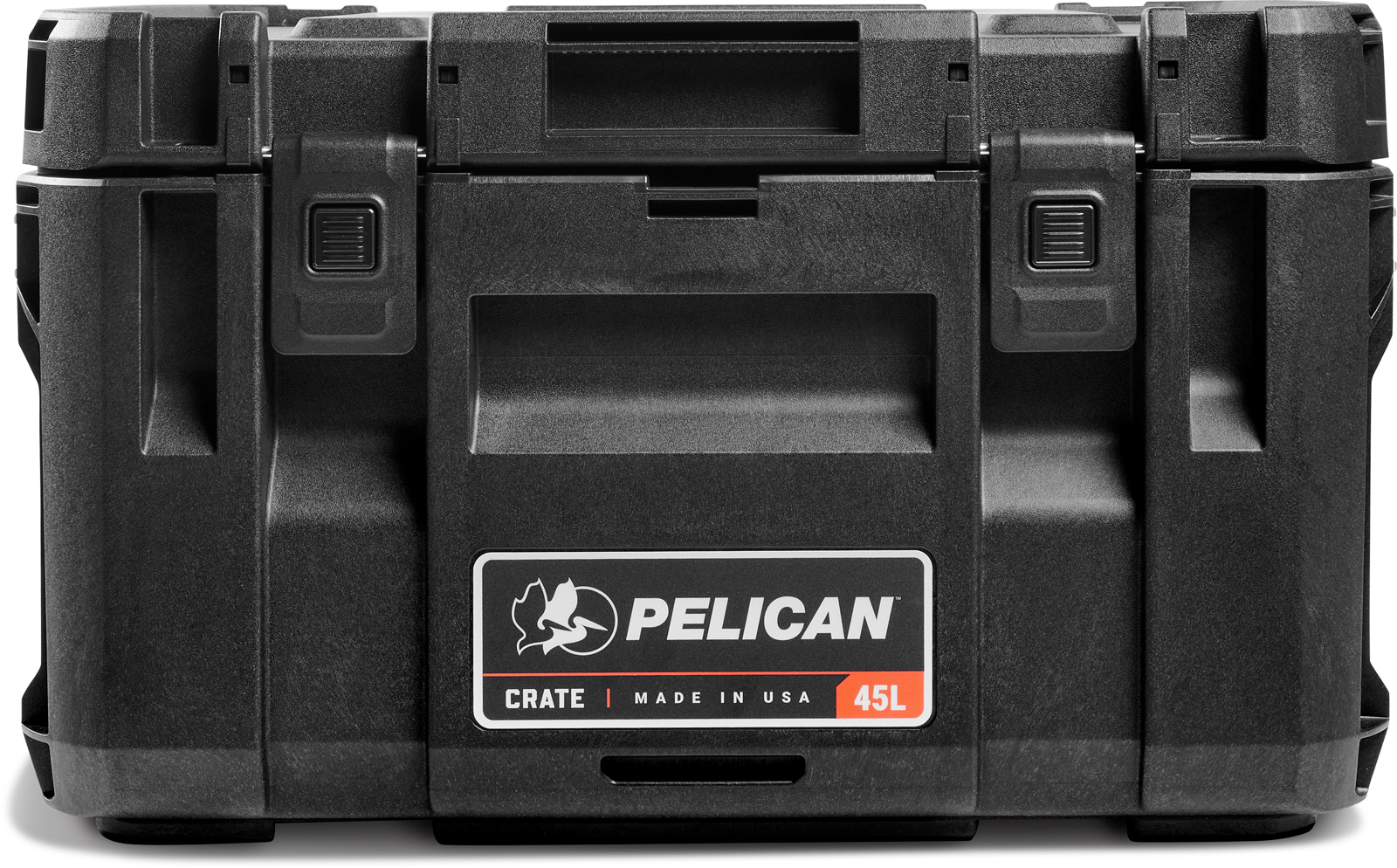

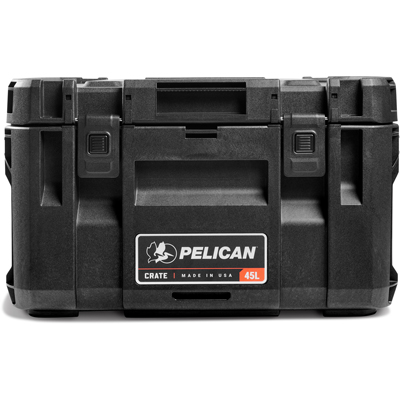

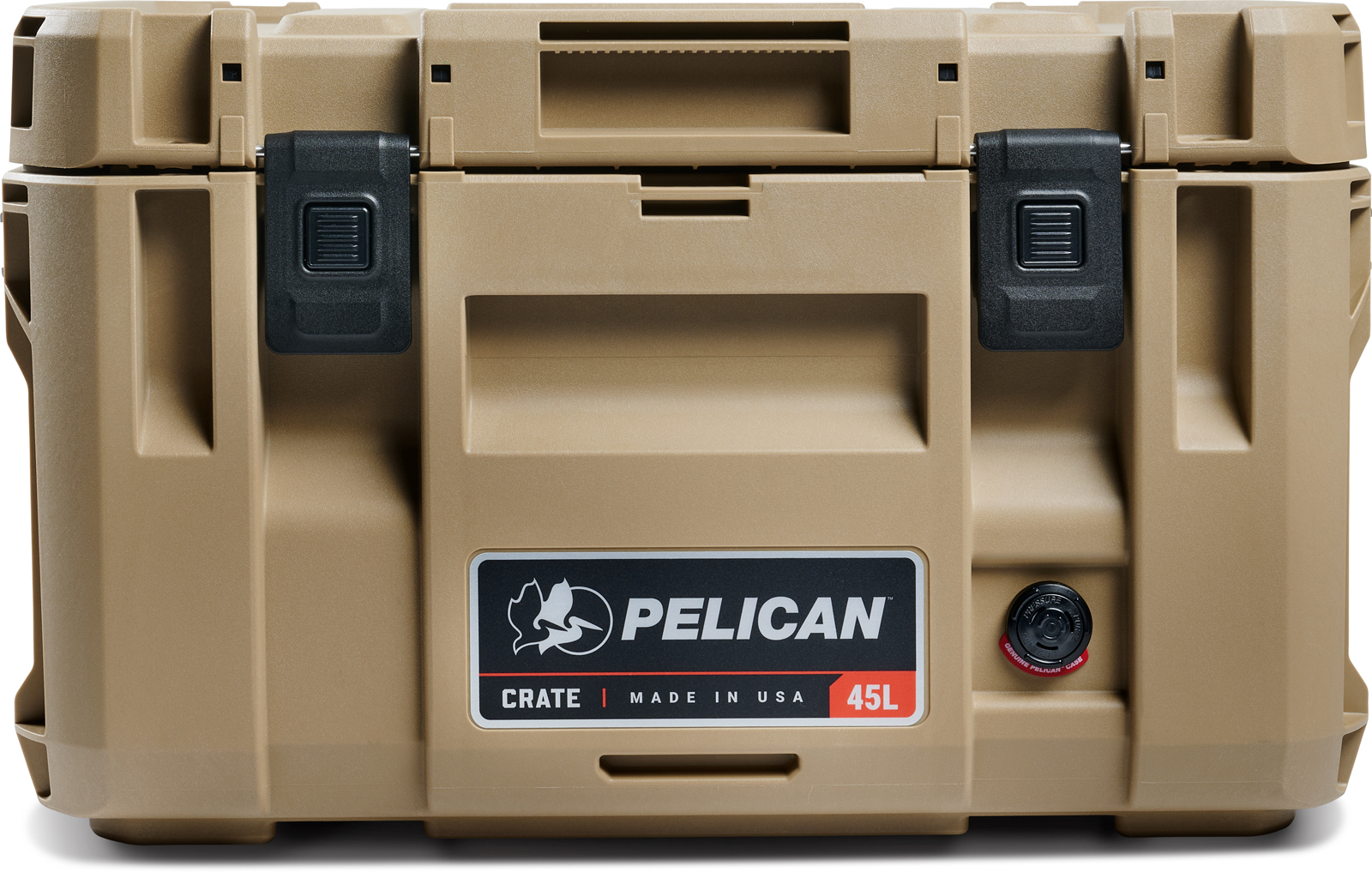

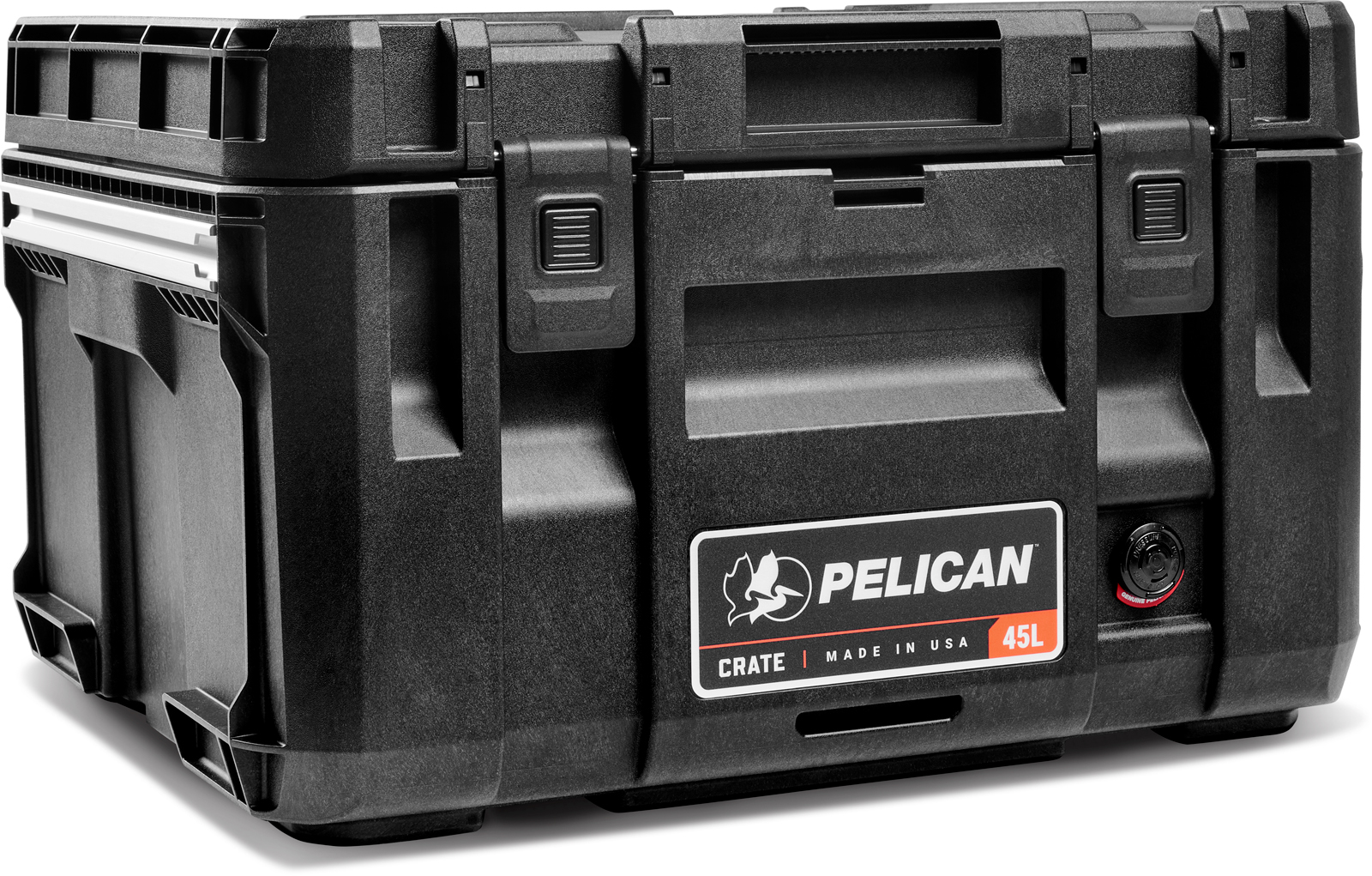

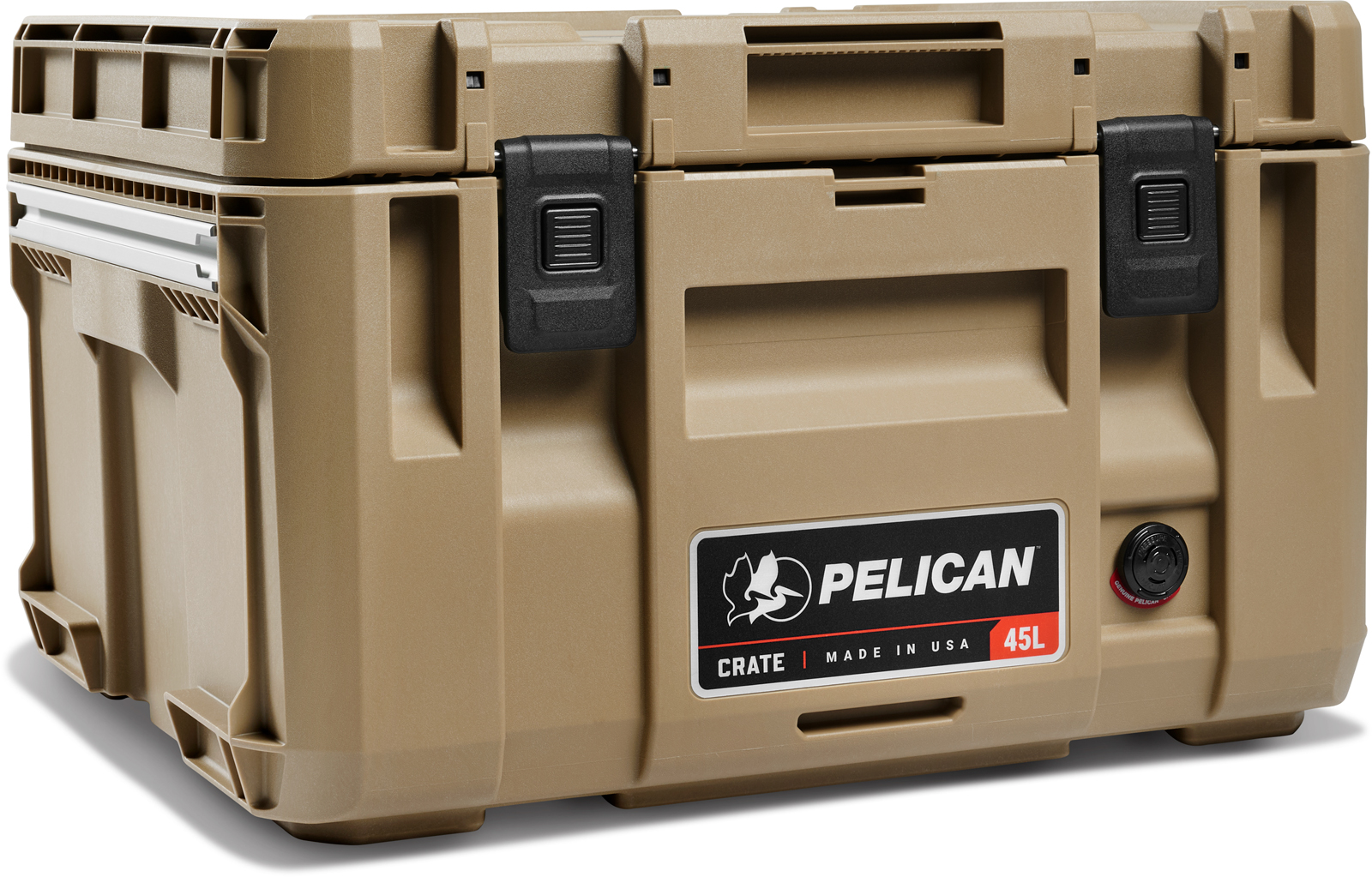

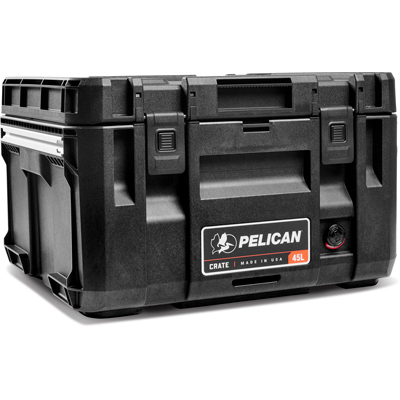

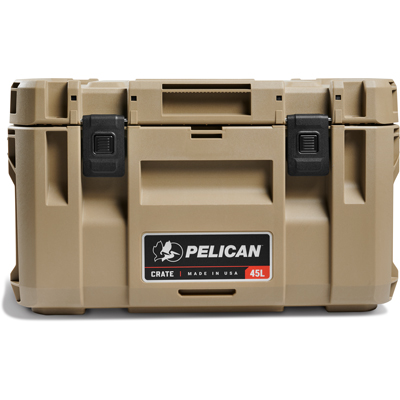

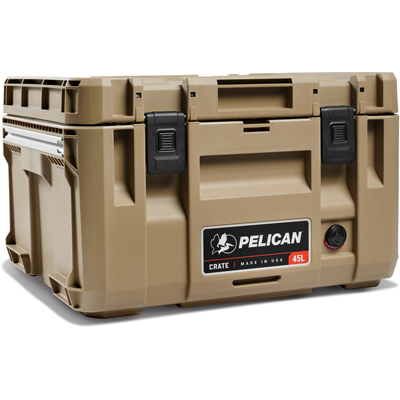

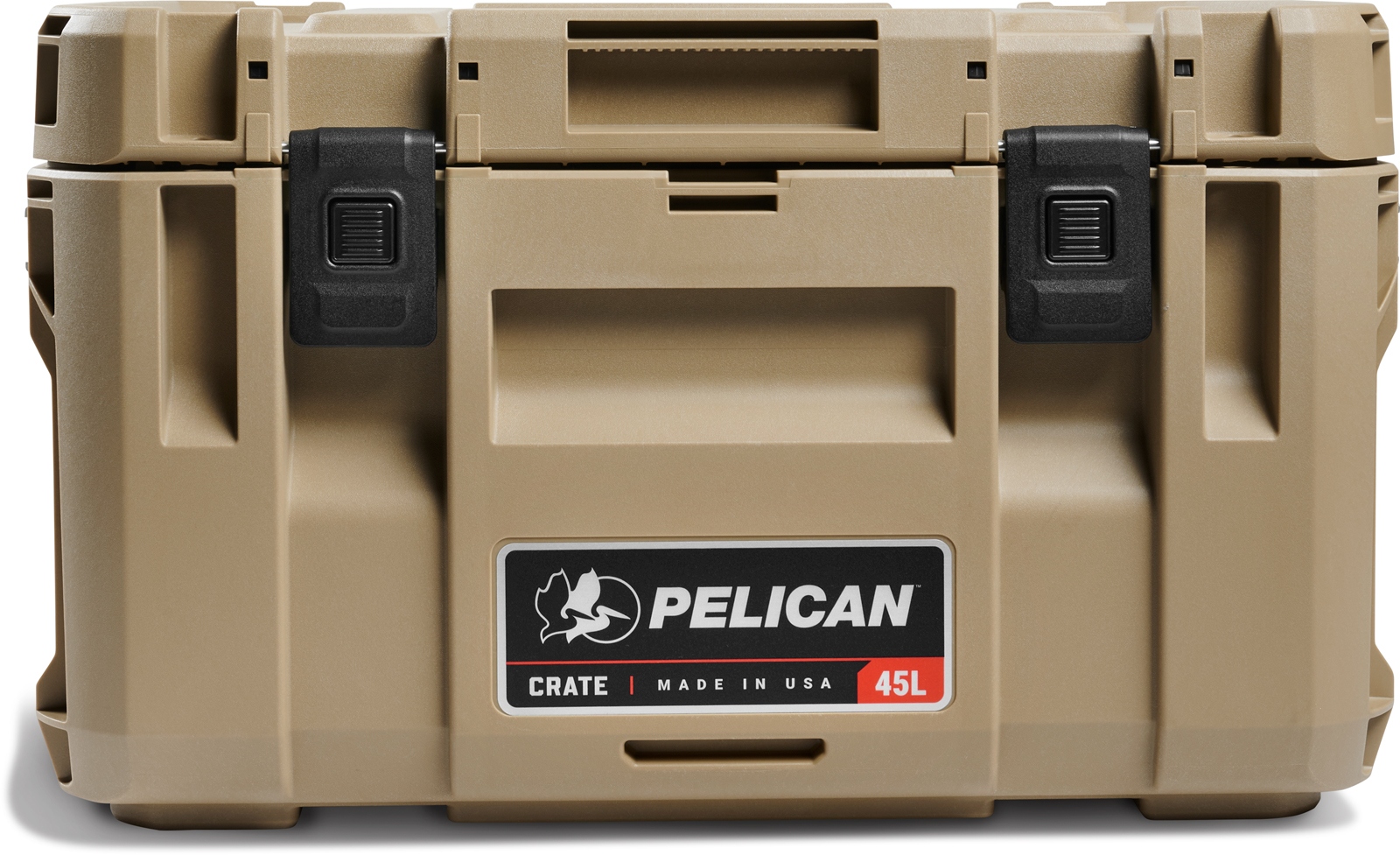

Pelican™ CRATE 45L

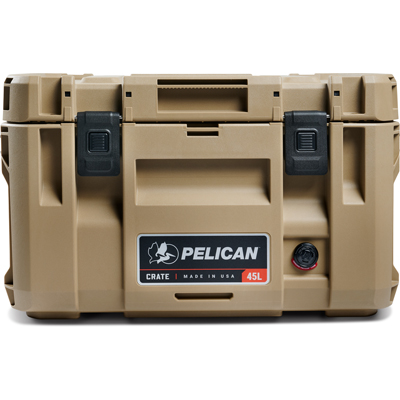

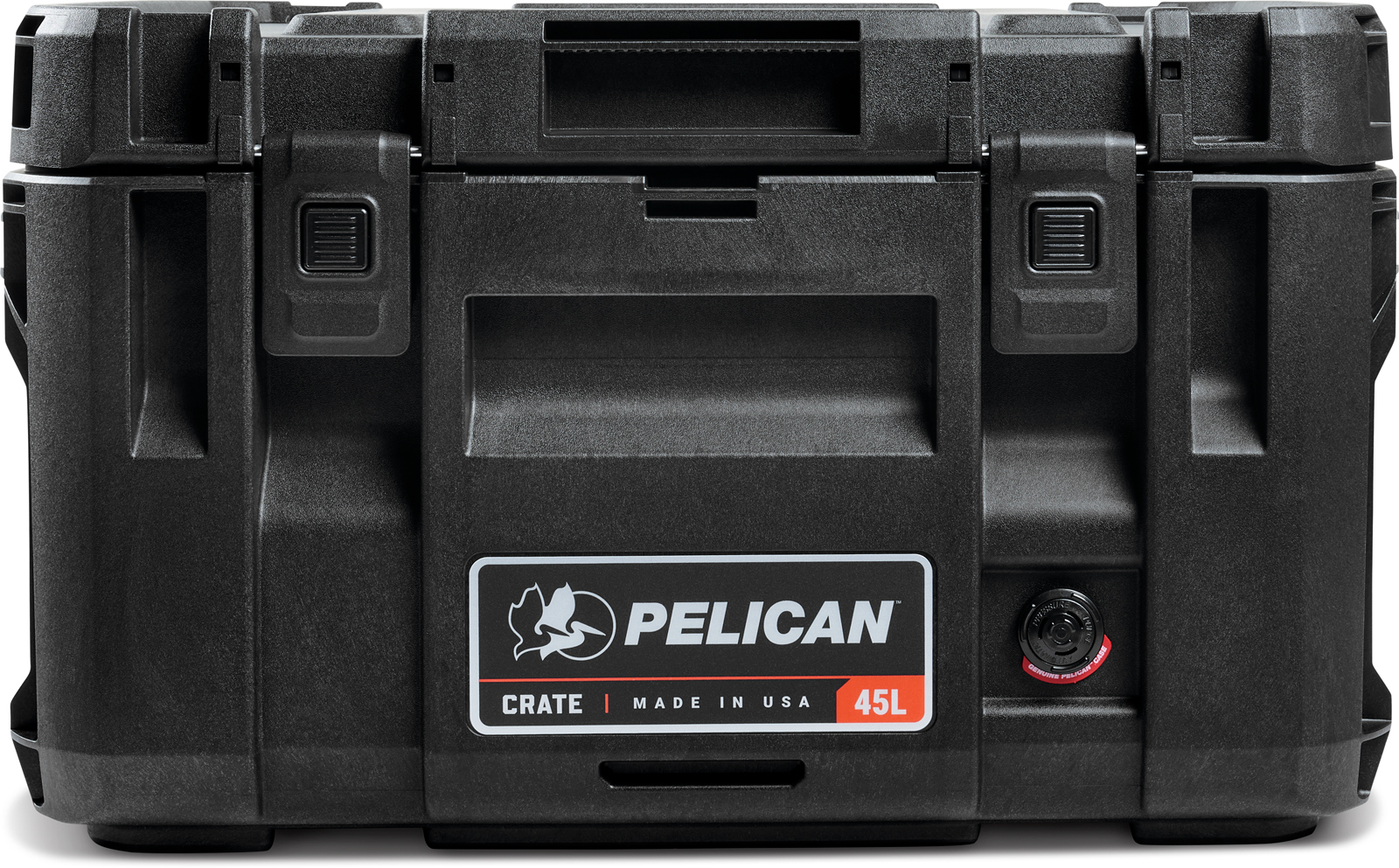

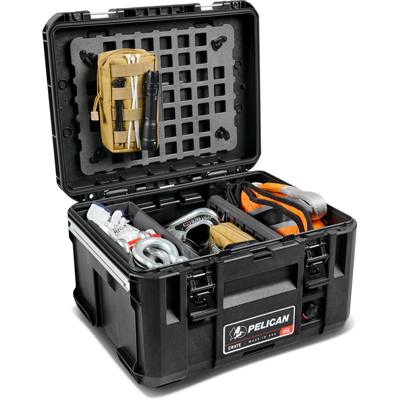

Pelican CRATE is a fully configurable ecosystem built to load, secure, and deploy your equipment with absolute confidence. Engineered from our legendary Pelican Protector HPXC resin, CRATE delivers uncompromising, IP67-rated protection against water, dust, and impact. Take control of your exterior with the integrated ModRail™ system of tie-downs, mounts and accessories to securely anchor your loadout to roof racks and truck beds. A multi-position removable lid and interlocking design enable steadfast stacking and instant access to your gear when it matters most. Rugged, stackable, and field-ready, CRATE lets you load, secure, and deploy your equipment anywhere your adventure takes you.
- IP67-rated: waterproof, dustproof, and crushproof performance

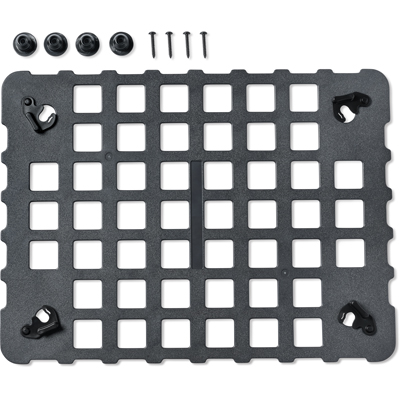

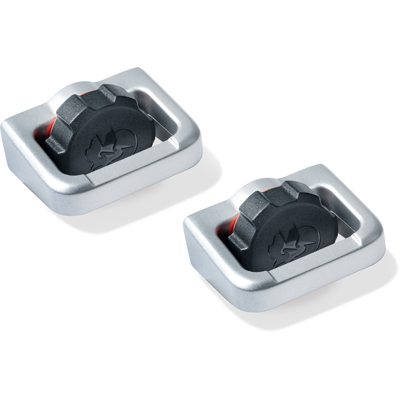

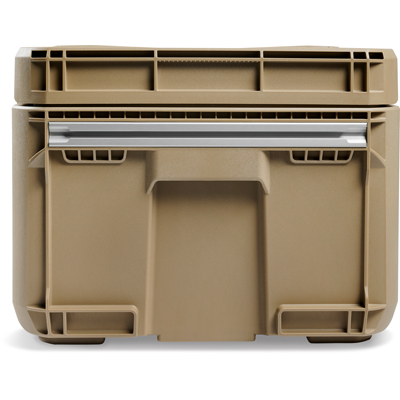

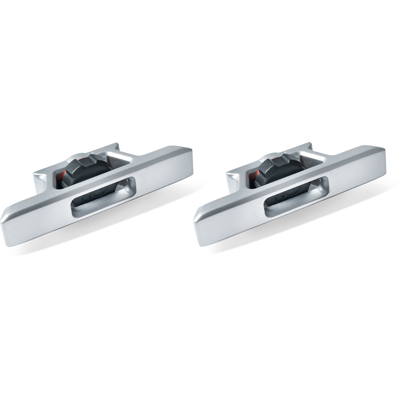

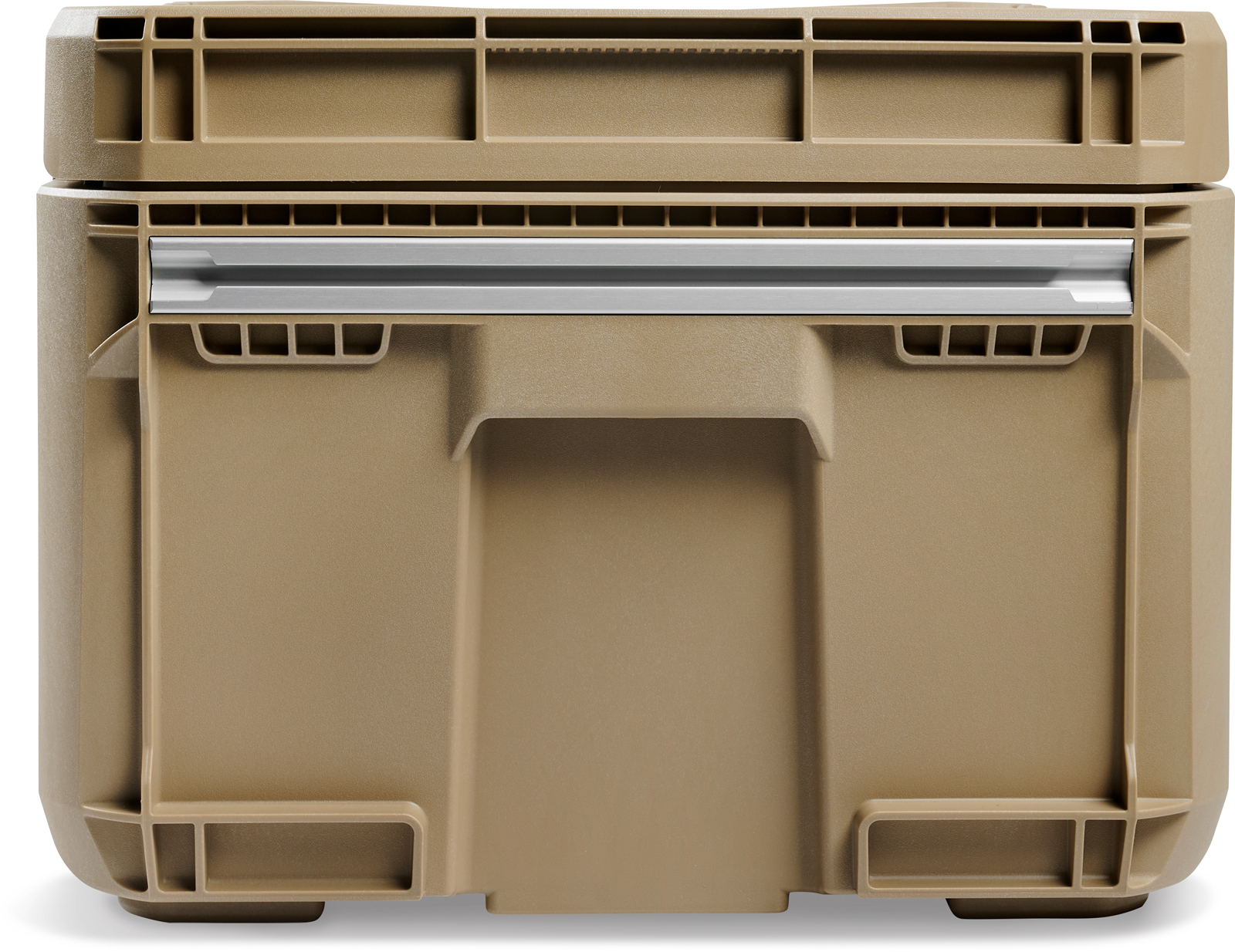

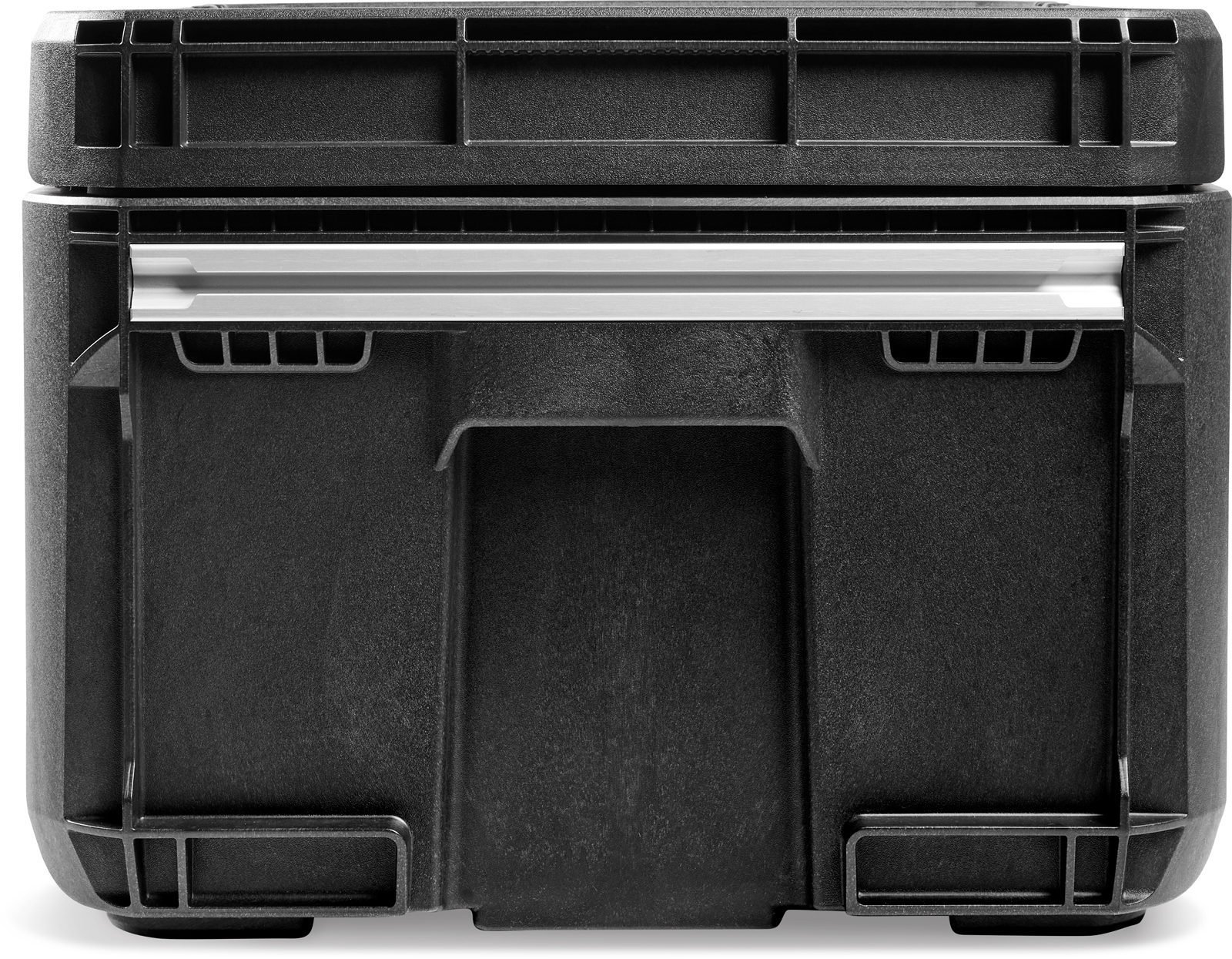

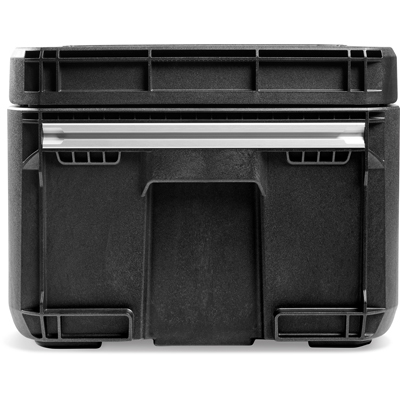

- Integrated ModRail™ system for mounts, tie-downs, and modular accessories

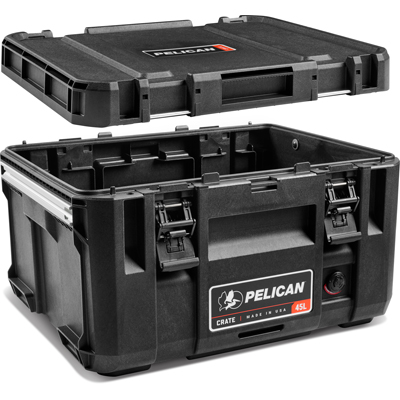

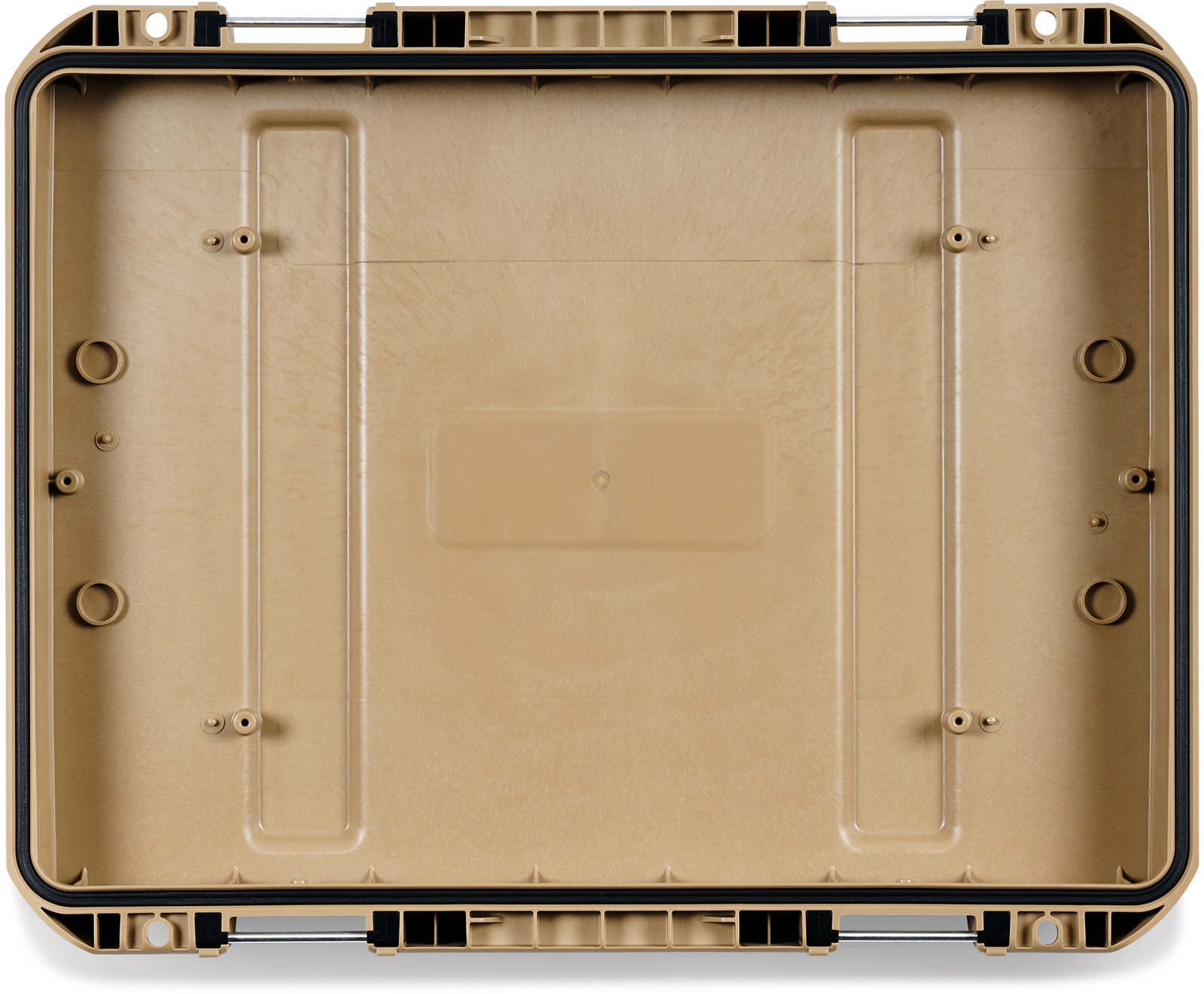

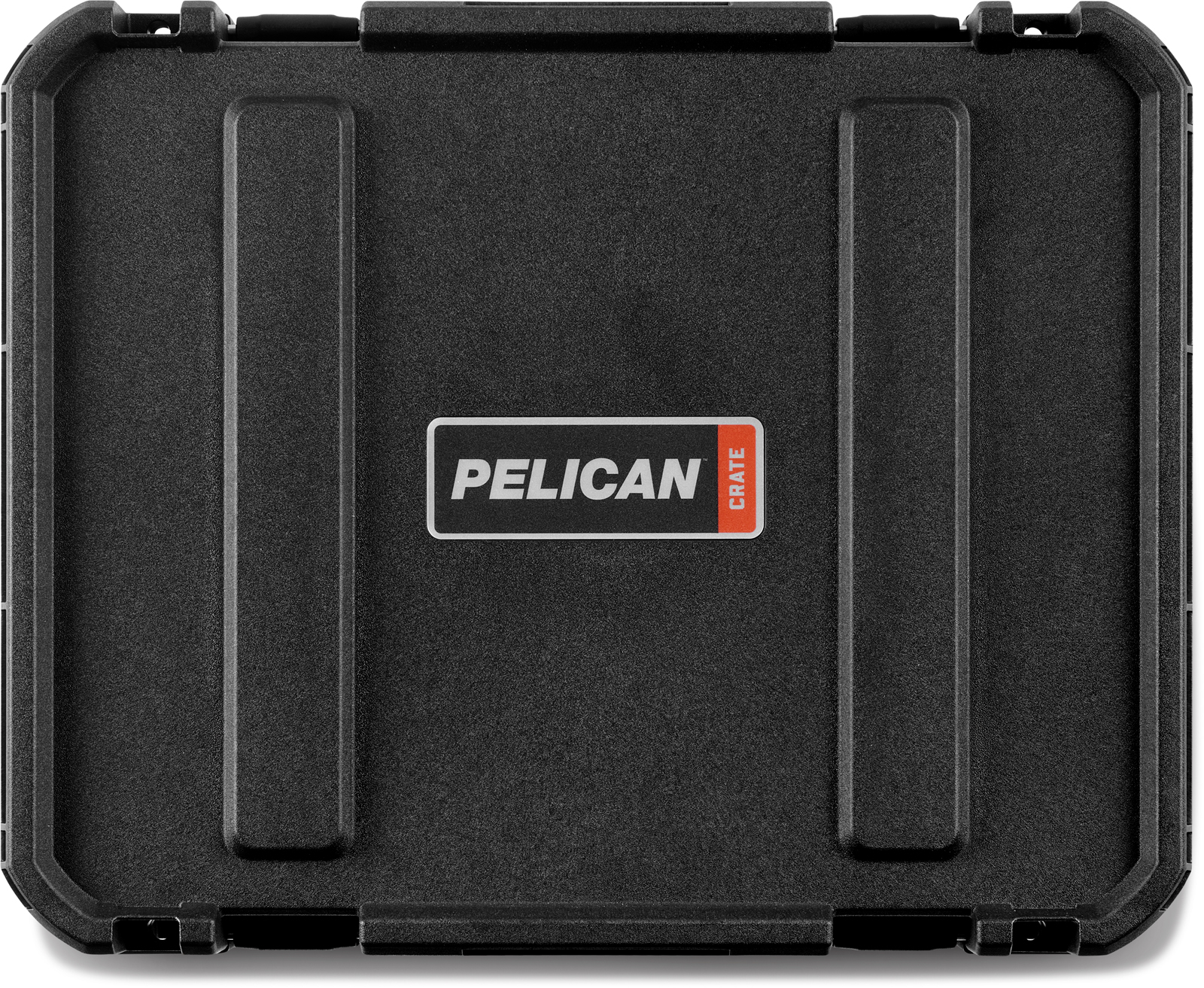

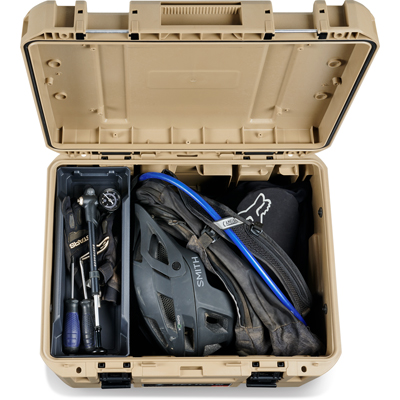

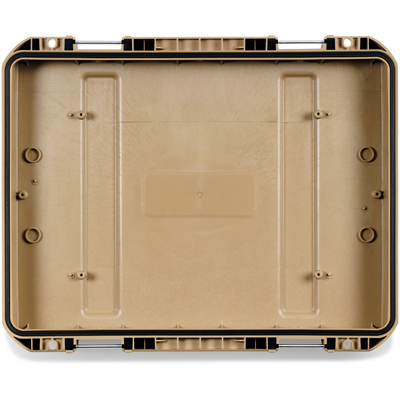

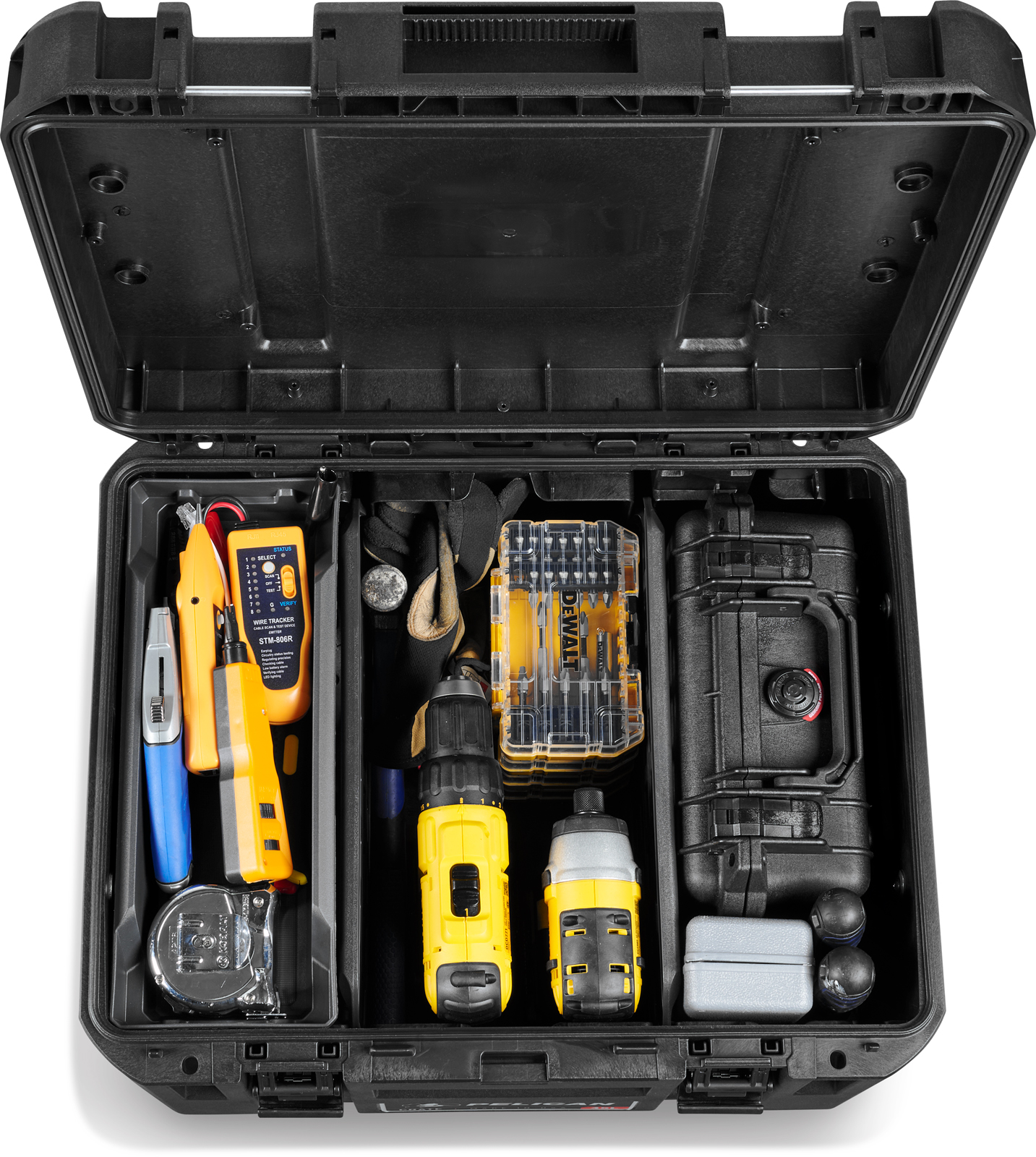

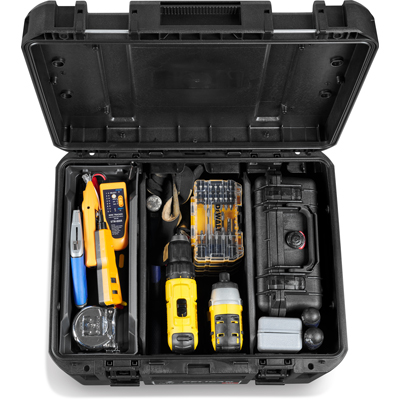

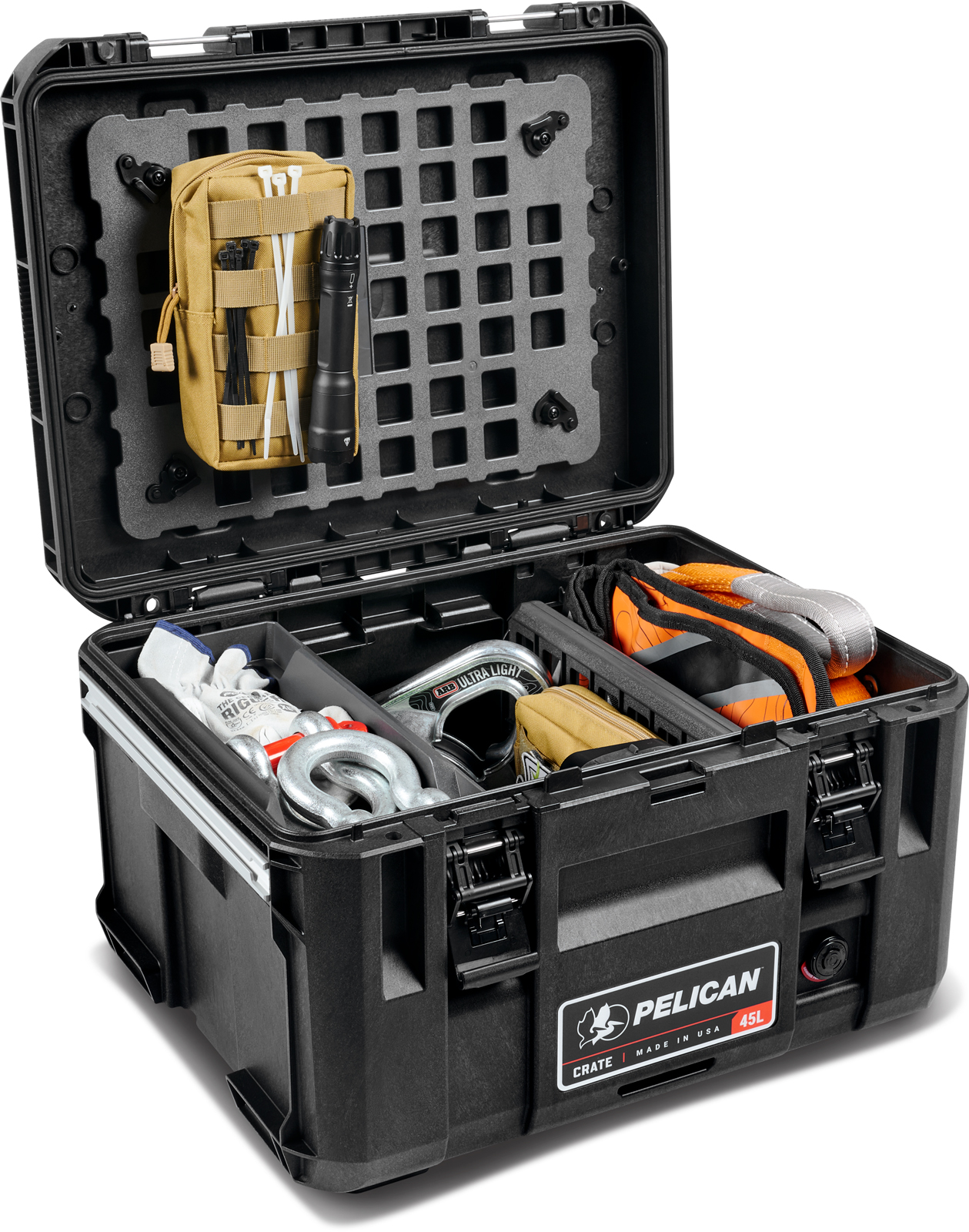

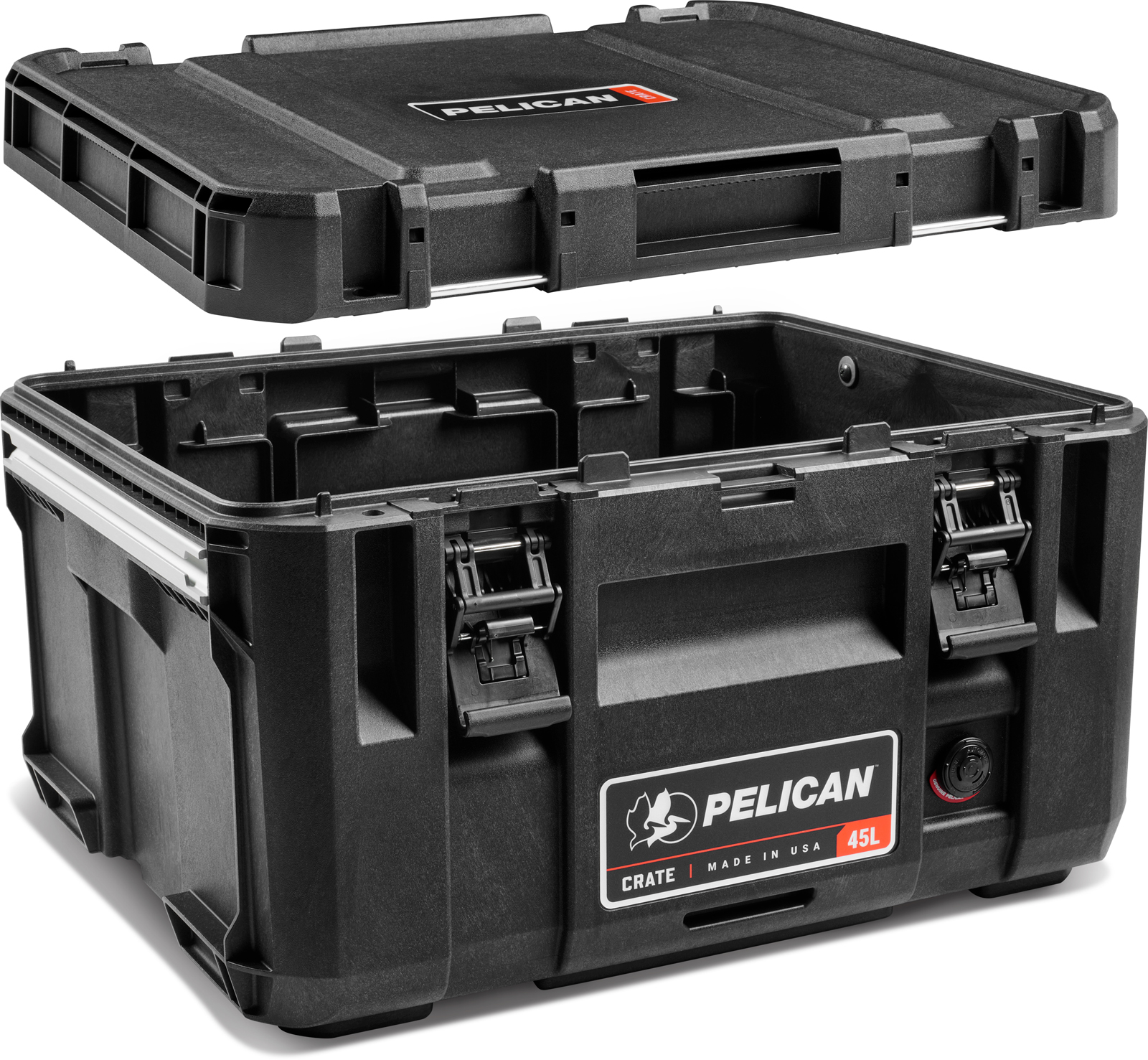

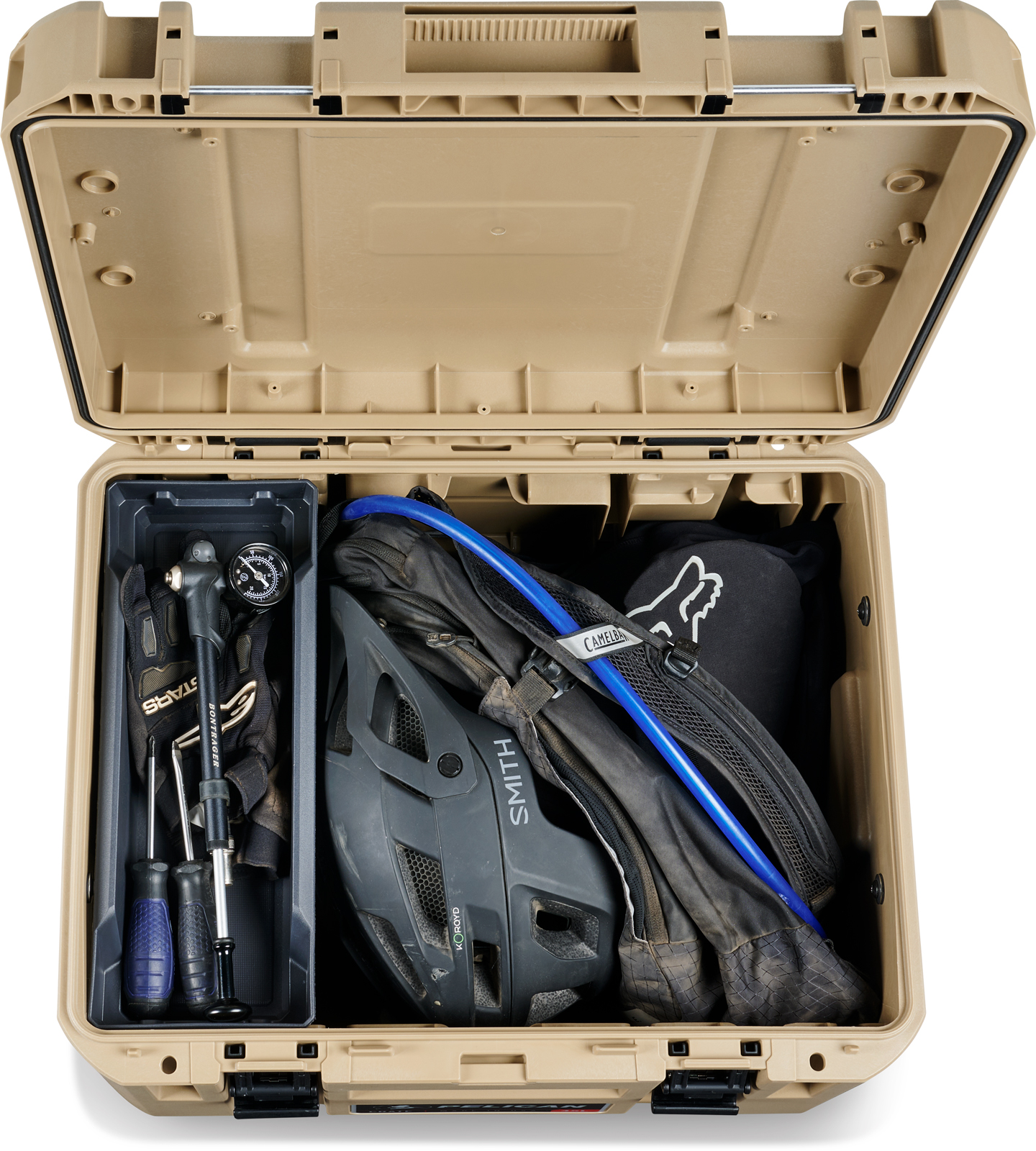

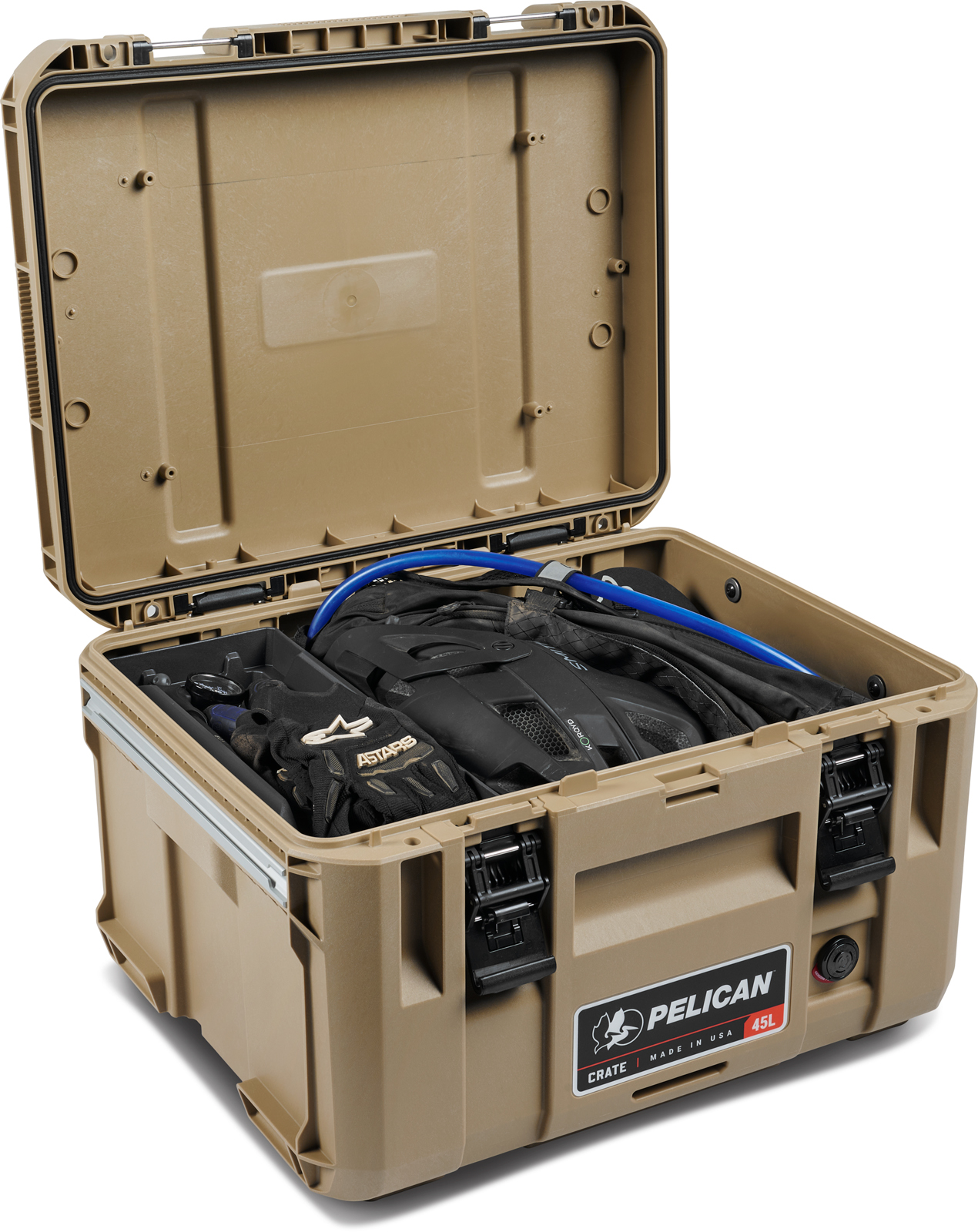

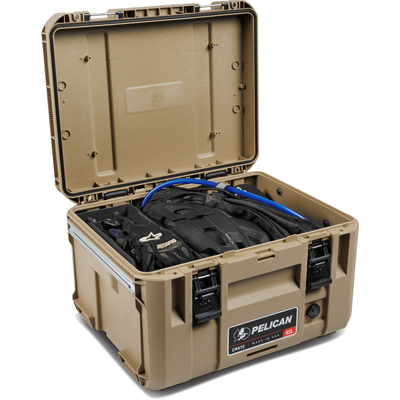

- Multi-position, removable lid opens from either side for quick access

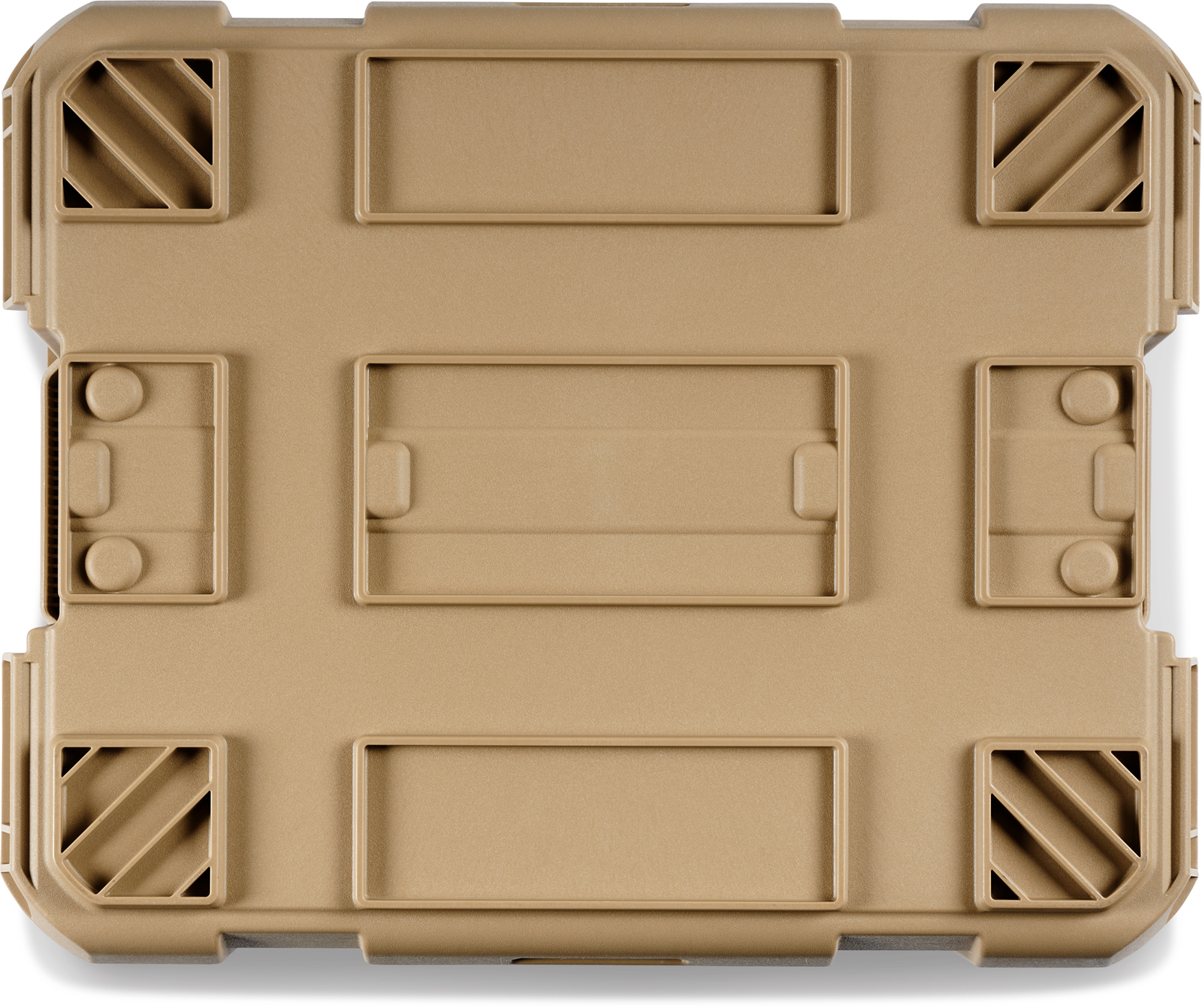

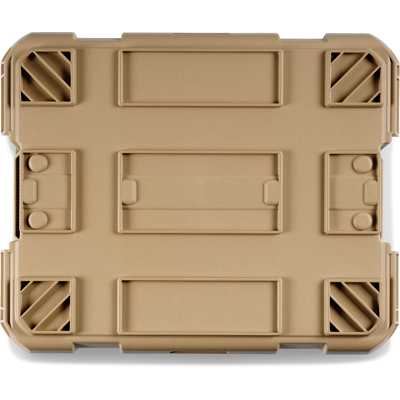

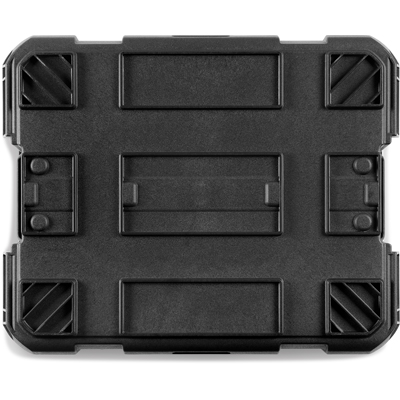

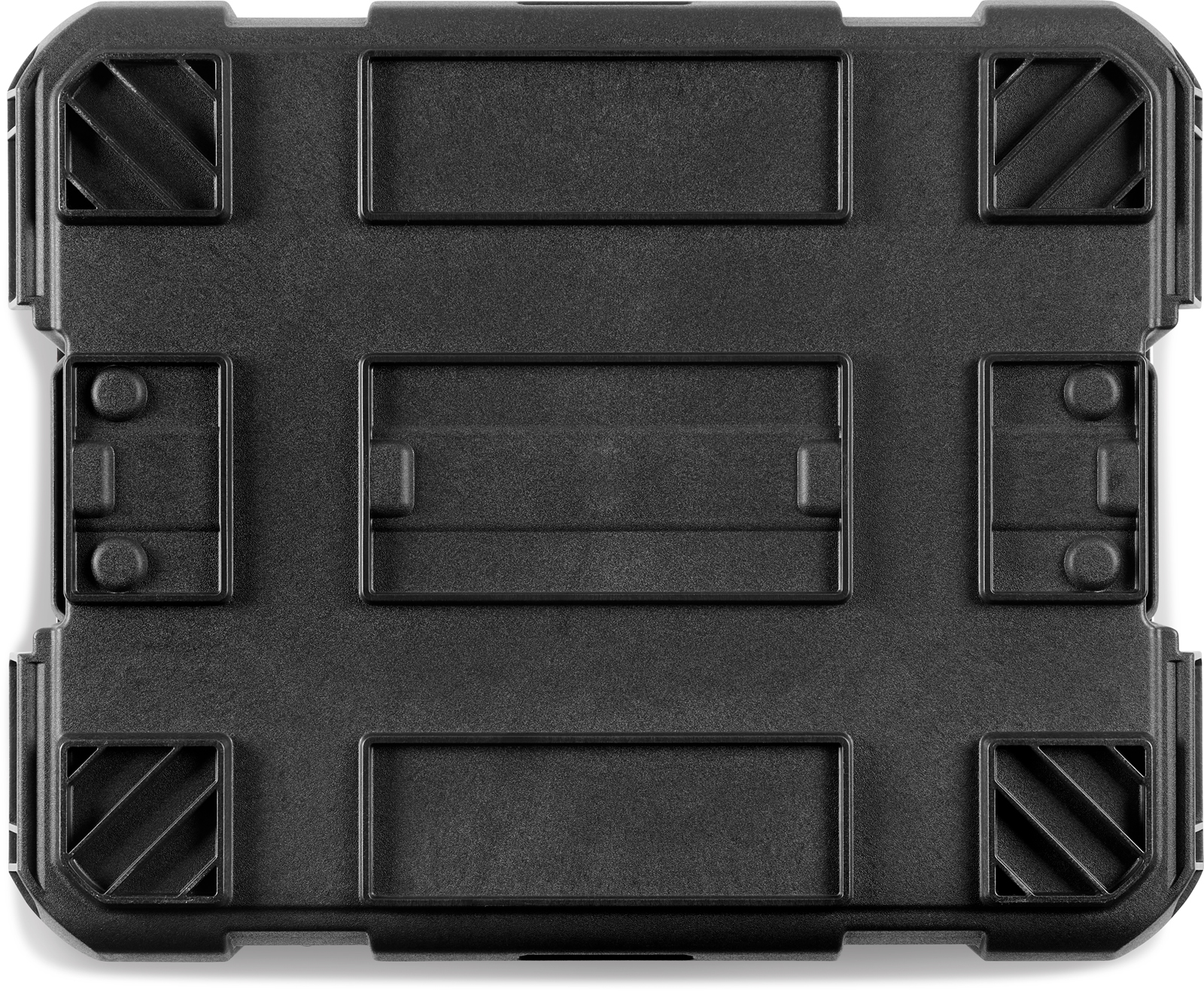

- Interlocks securely across multiple sizes for stable stacking
- Reinforced grab handles
- Padlockable Hasps
- Automatic Pressure Equalization Valve
- Lifetime Guarantee of Excellence
YOU MAY ALSO LIKE
SPECS
DIMENSIONS
Interior (L×W×D)
17.8 x 13.9 x 11 in
(45.2 x 35.3 x 27.9 cm)
(45.2 x 35.3 x 27.9 cm)
Exterior (L×W×D)
20.1 x 16.3 x 12.1 in
(51.1 x 41.4 x 30.7 cm)
(51.1 x 41.4 x 30.7 cm)
MEASUREMENTS
Lid Depth
1.69" (4.3 cm)
Bottom Depth
9.31" (23.6 cm)
Total Depth
11" (27.9 cm)
Int Volume
1.58 ft³ (0.045 m³)
Padlock Hole Diameter
5" (8 mm)
WEIGHTS
Weight Empty
10.5 lbs (4.8 kg)
MATERIALS
Body Material
Polypropylene
Latch Material
Nylon
O-Ring Material
Silicone
Pins Material
Aluminum & Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven
TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
190° F (88 ° C)
