1560SC2 Protector Studio Case

Colors

OVERVIEW

Pelican™ Protector Case™ Studio Case

Built for creators who move fast and work in demanding environments, the Pelican Protector Studio Case transforms the legendary Protector into a complete mobile workflow system. Engineered with next-generation HPXp polymer for superior impact resistance and long-term durability, it delivers the trusted watertight, crushproof, and dustproof protection professionals rely on.

Purpose-configured for photography and video equipment, the Studio Case combines a fully customizable padded divider interior with integrated lid organization and in-case lighting, keeping every accessory protected, visible, and ready to deploy. New smooth-rolling wheels and upgraded push-button latches make transport and access faster and more intuitive wherever the job takes you.

  • Waterproof, Crushproof & Dustproof - The legendary Protector, now built with next-generation HPXp polymer for superior impact resistance.

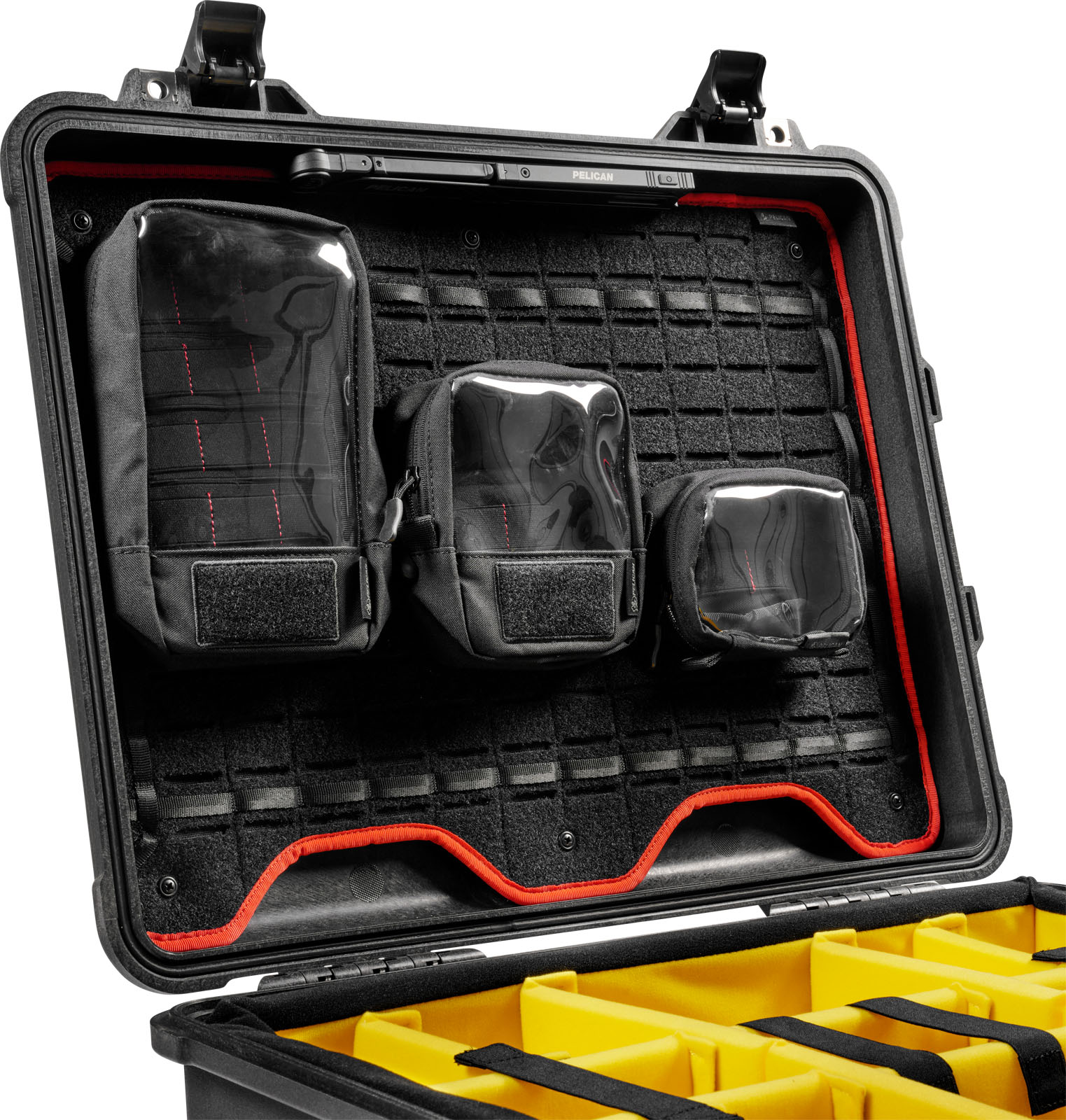

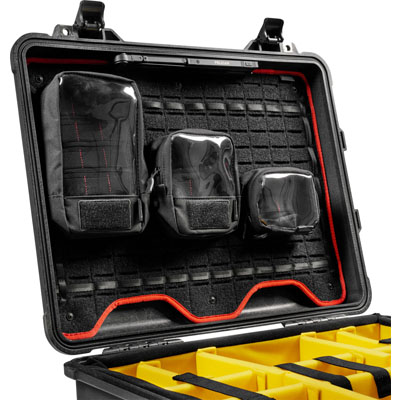

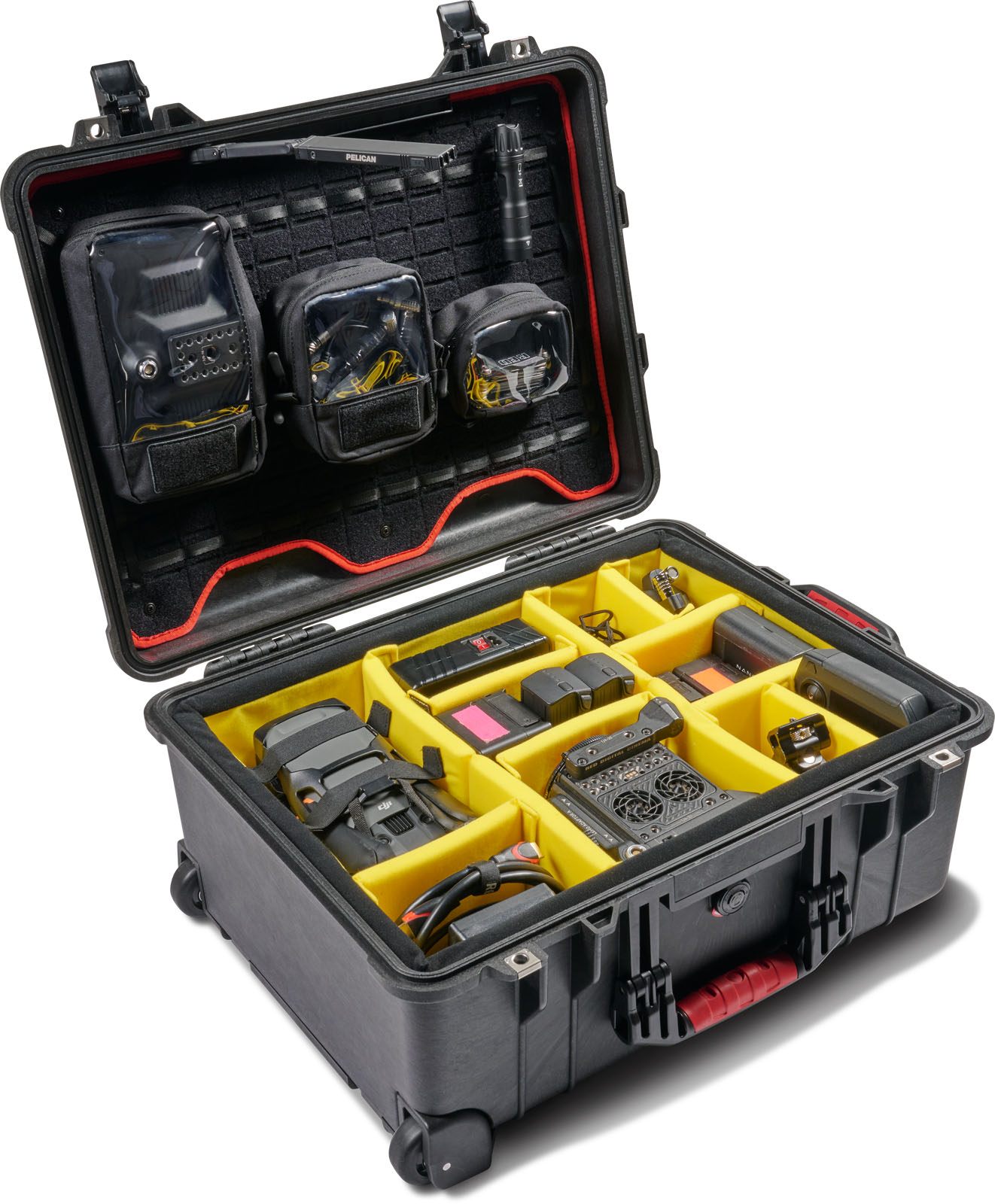

  • Integrated Lid Organization - GridPoint Panel with included ModPak Utility Pouches keeps accessories organized, visible, and easy to access.

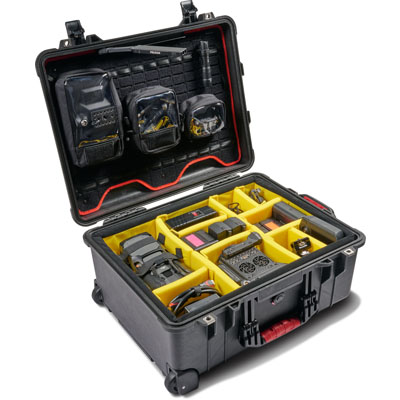

  • Professional In-Case Lighting - ModLight Pivot illuminates equipment inside the case for improved visibility in low-light environments.

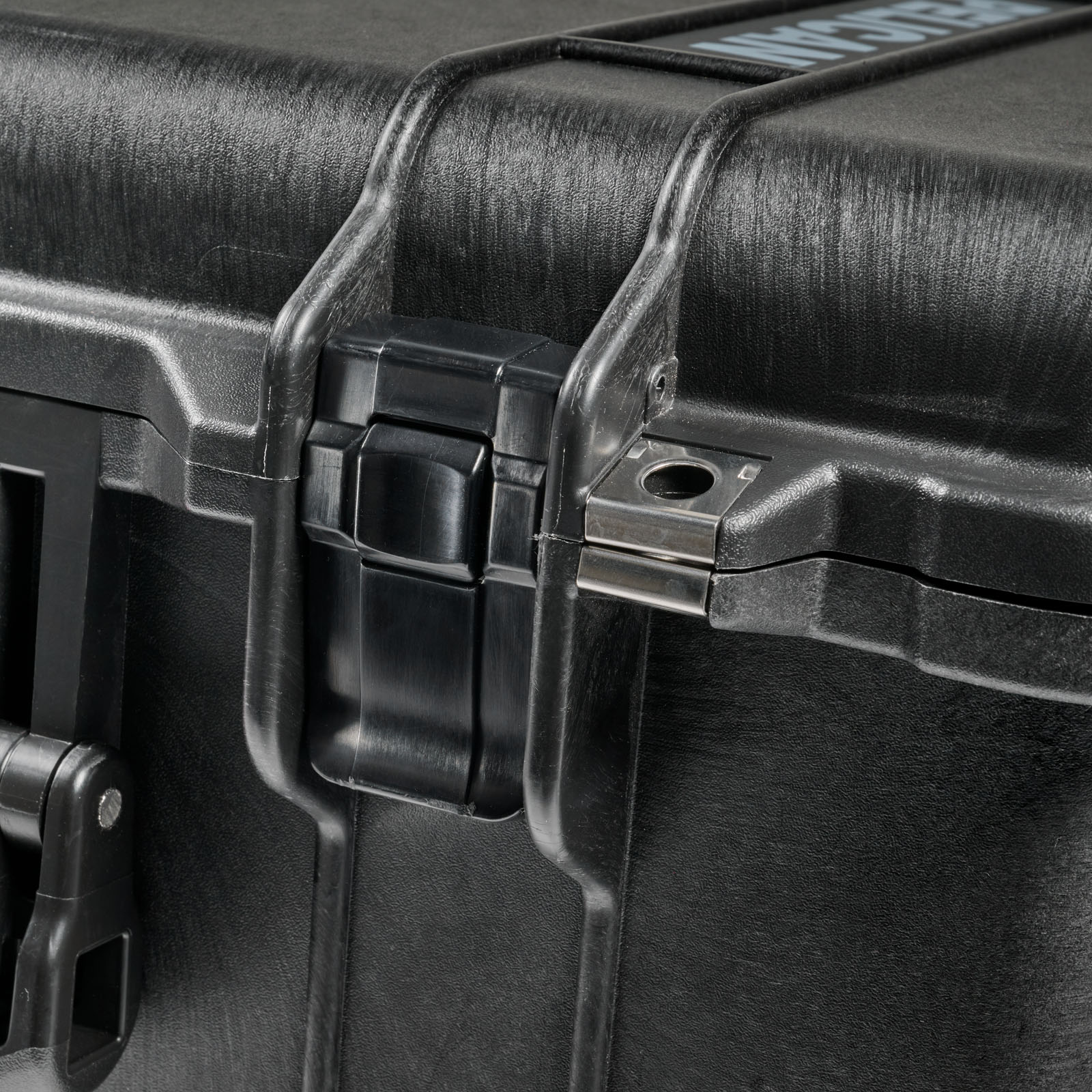

  • Upgraded Push-Button Latches - New push-button latches deliver secure, intuitive access with positive engagement—even while wearing gloves.

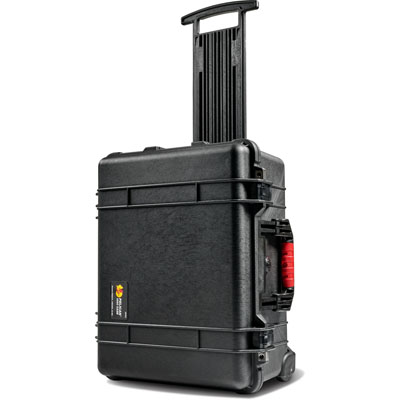

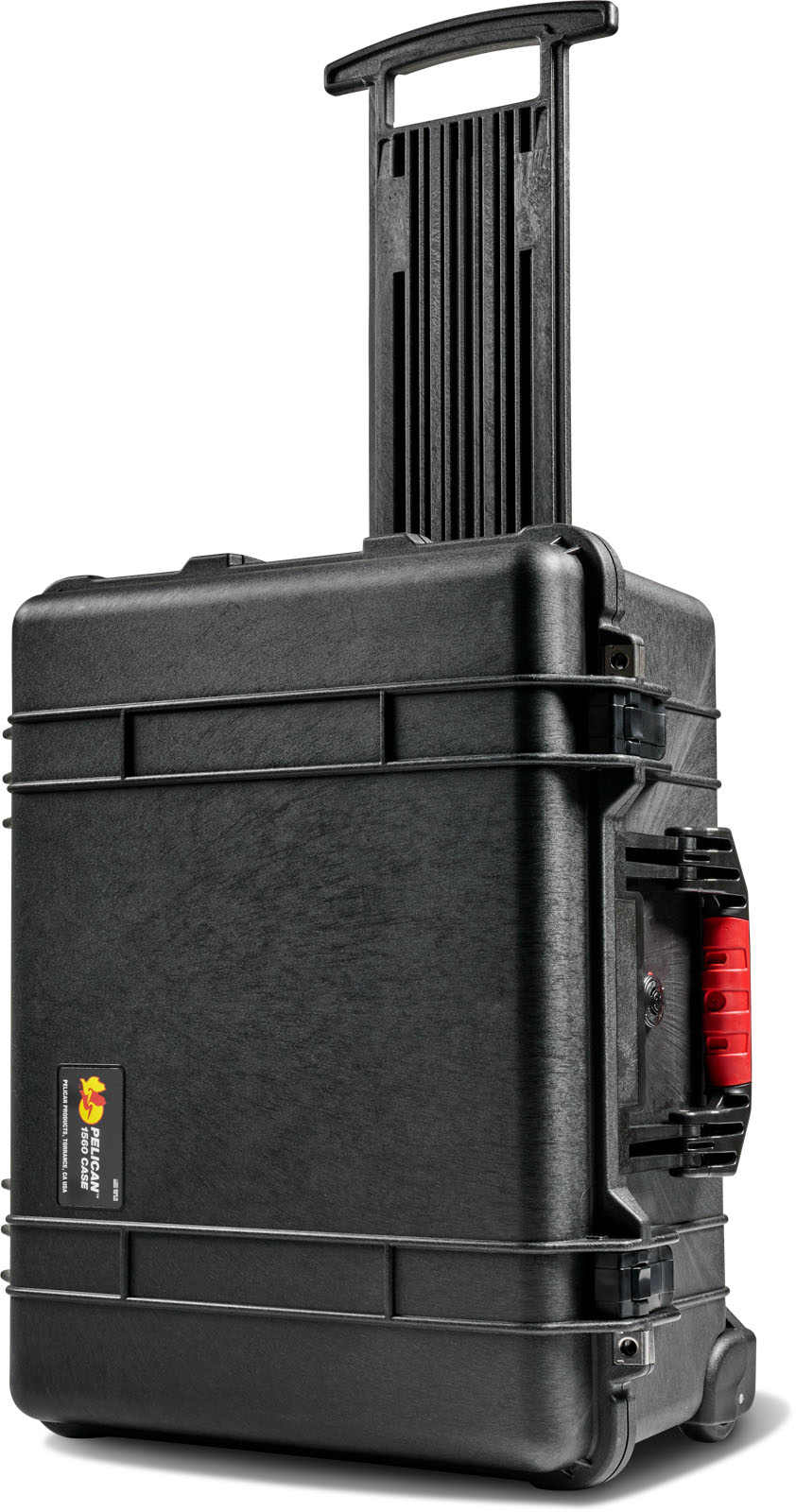

  • Smooth-Rolling Mobility - New quiet-rolling wheels with stainless steel bearings provide smoother transport across terminals, locations, and job sites.

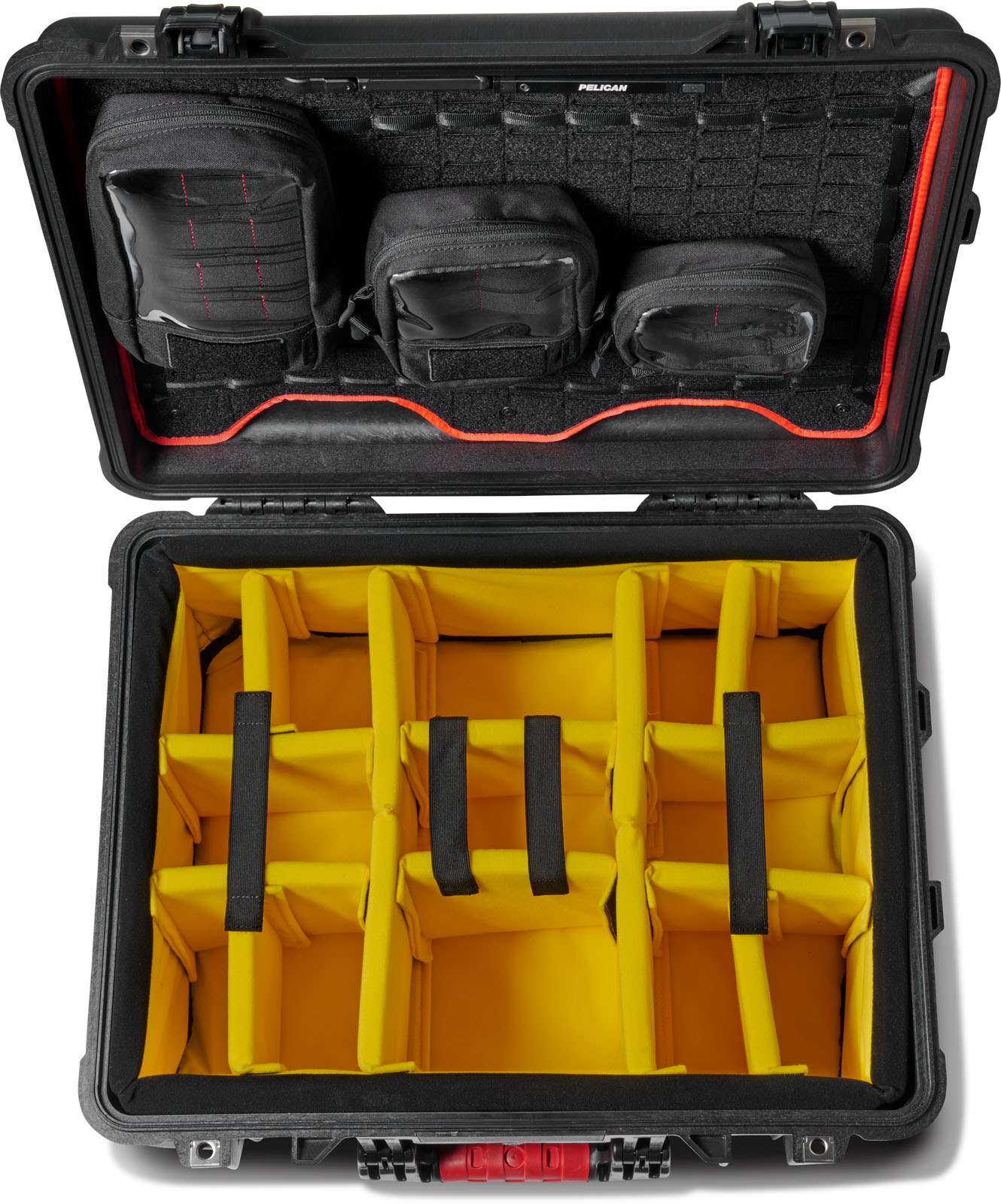

  • Customizable Padded Interior - Configurable padded divider system securely organizes and protects camera, video, and production equipment.

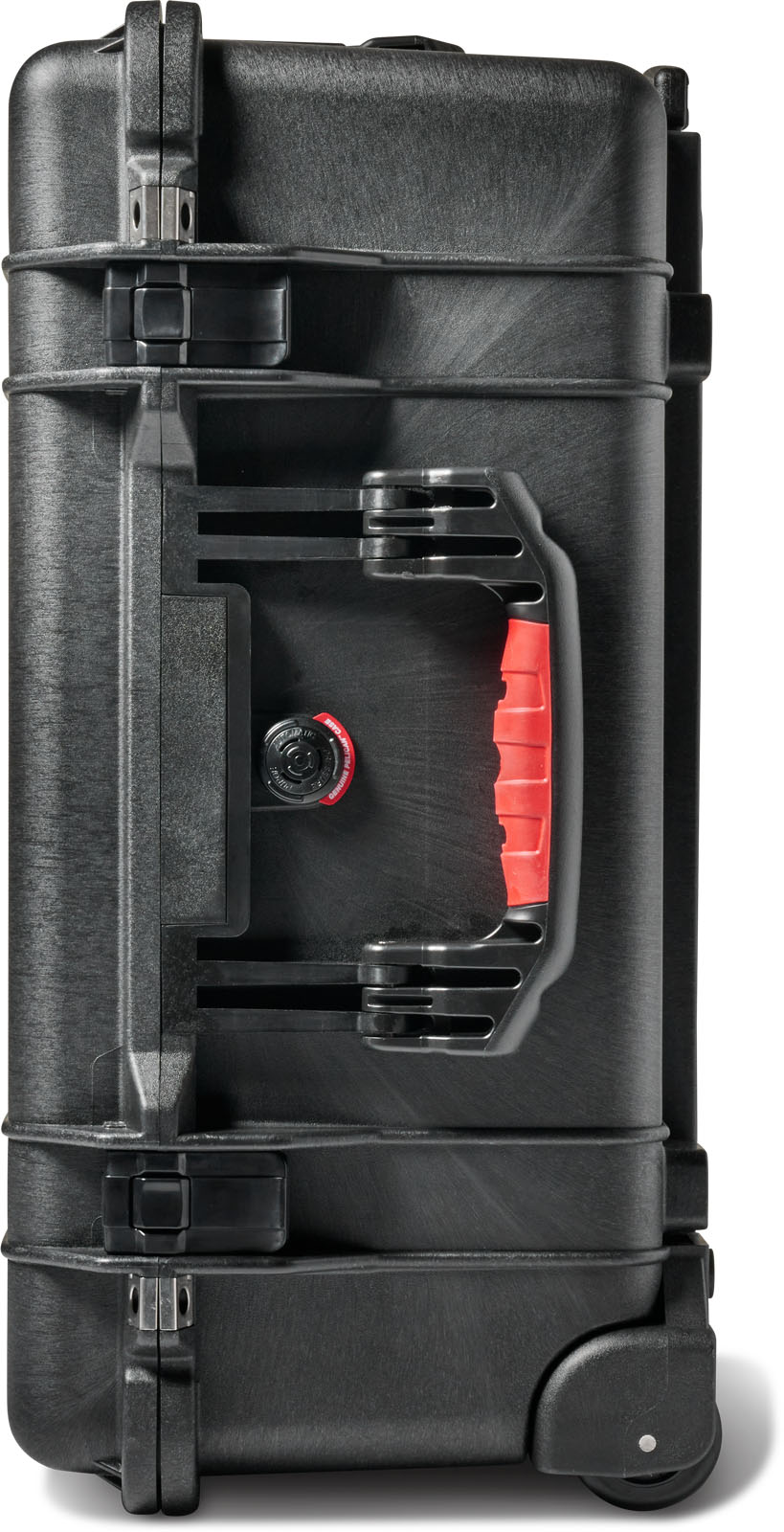

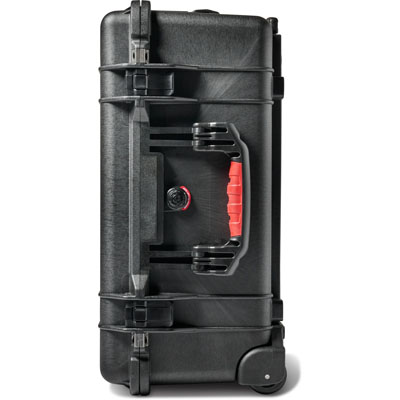

  • Automatic Pressure Equalization Valve - Balances interior pressure after altitude or temperature changes for easier opening.
  • Stainless Steel Hardware - Corrosion-resistant hardware and reinforced padlock protectors built for long-term durability.
  • Made in the USA - Designed and manufactured in the USA.
  • Lifetime Guarantee of Excellence - Backed by Pelican’s legendary lifetime guarantee.
DIMENSIONS
Interior (L×W×D)
19.92 x 14.98 x 9 in
(50.6 x 38 x 22.9 cm)
Exterior (L×W×D)
22.07 x 17.92 x 10.42 in
(56.1 x 45.5 x 26.5 cm)

MEASUREMENTS
Lid Depth
2" (5.1 cm)
Bottom Depth
7" (17.8 cm)
Total Depth
9" (22.9 cm)
Int Volume
1.55 ft³ (0.044 m³)
Padlock Hole Diameter
5" (8 mm)

WEIGHTS
Weight Empty
17 lbs (7.7 kg)
Weight
18.7 lbs (8.5 kg)
Buoyancy
115 lbs (52.2 kg)

MATERIALS
Body Material
HPXᴾ
O-Ring Material
Polymer
Pins Material
Stainless Steel
Foam Material
1.3 lb Polyurethane
Purge Body Material
ABS
Purge Vent Material
3 Micron Hydrophobic Non-Woven

TEMPERATURES
Minimum Temperature
-40° F (-40 ° C)
Maximum Temperature
10° F (-12 ° C)

OTHERS
Wheels
2
